Kaishan Best Price ZT5 mine drilling rig blasting

Email: lgdrill@hotmail.com

Follow us:

Chat Online Leave Message

Overview

Overview

Product Description

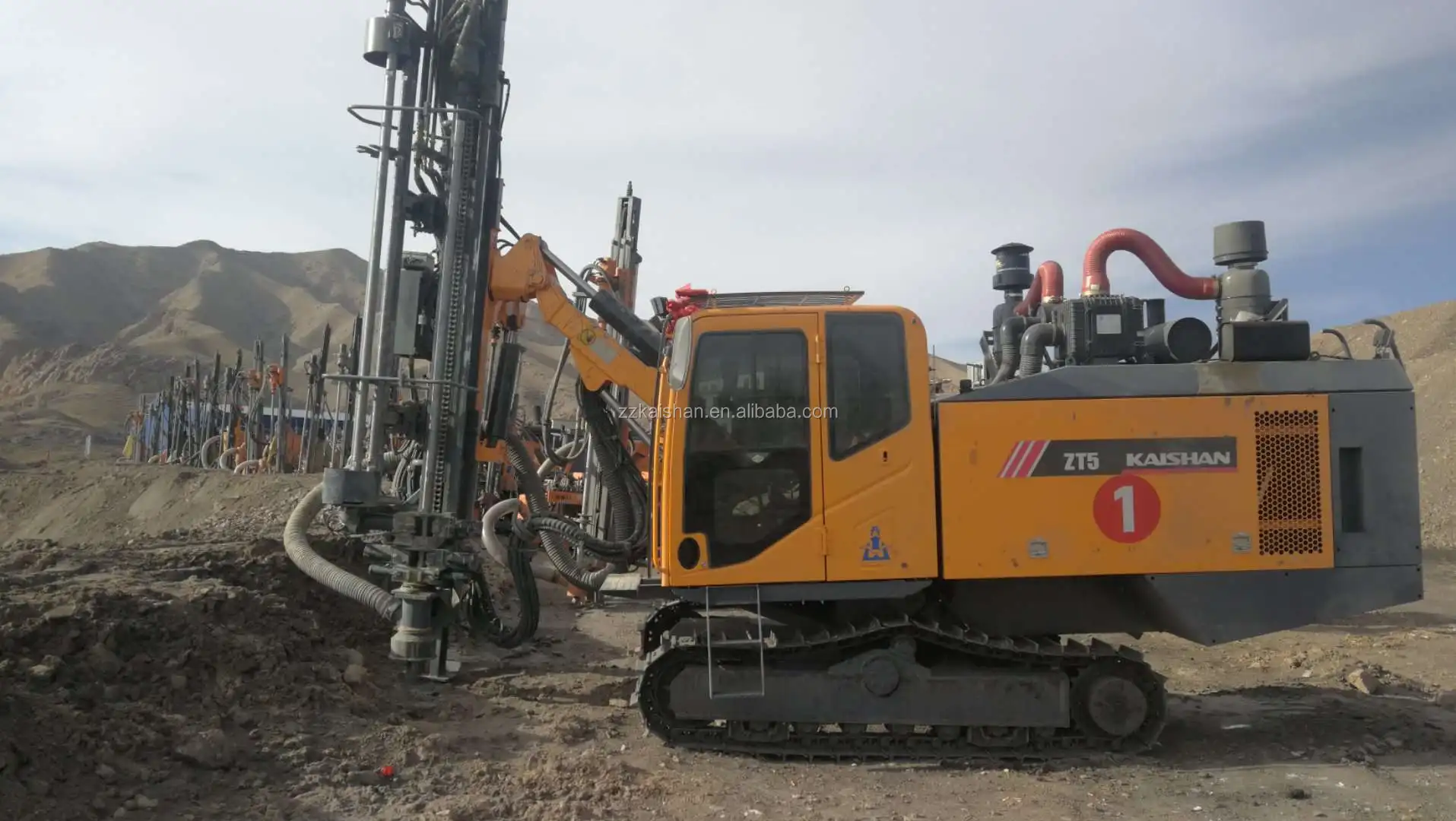

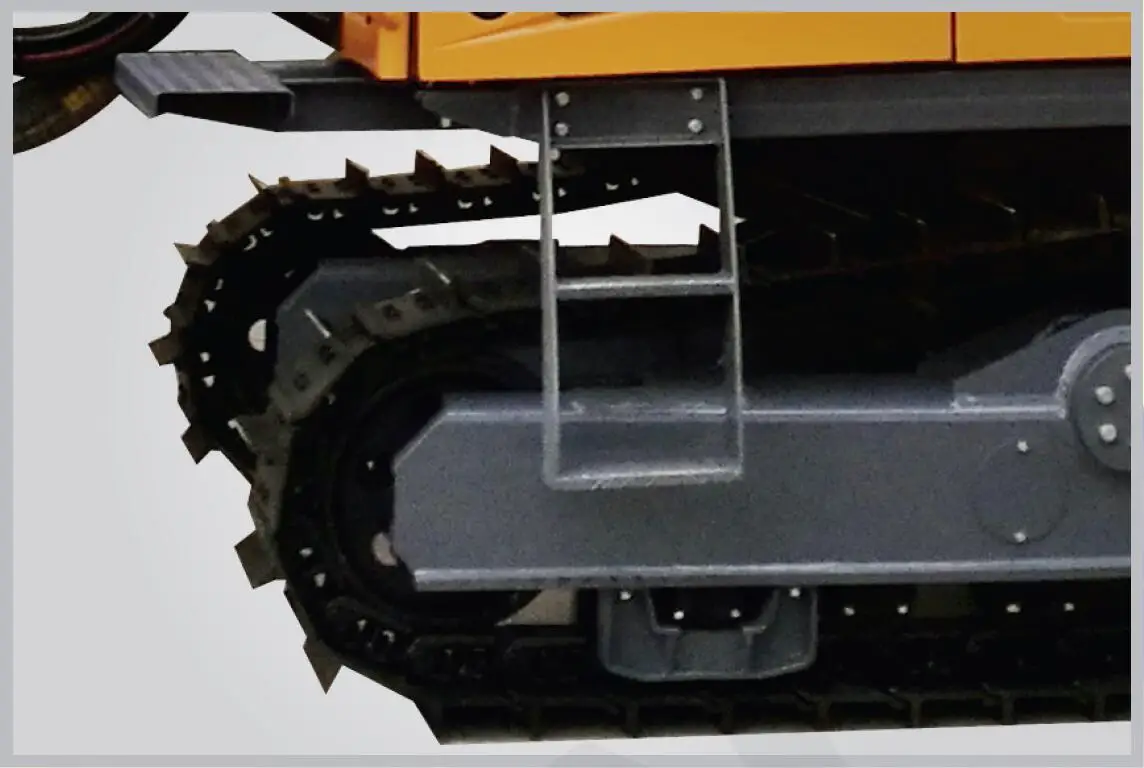

"Kaishan" brand ZT5 Integrated Down The Hole Drill Rig

Advantage of Integrated Down The Hole Drill Rig

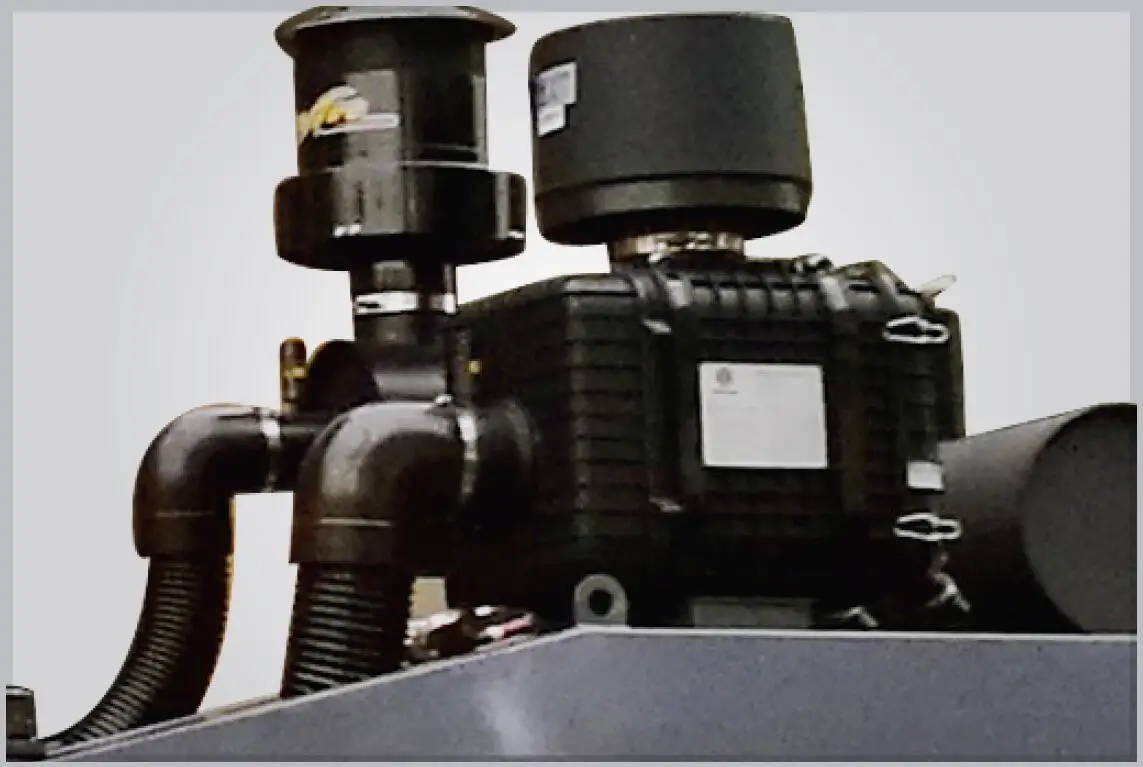

1. drilling rig with screw air compressor, no need to buy seperated air compressor

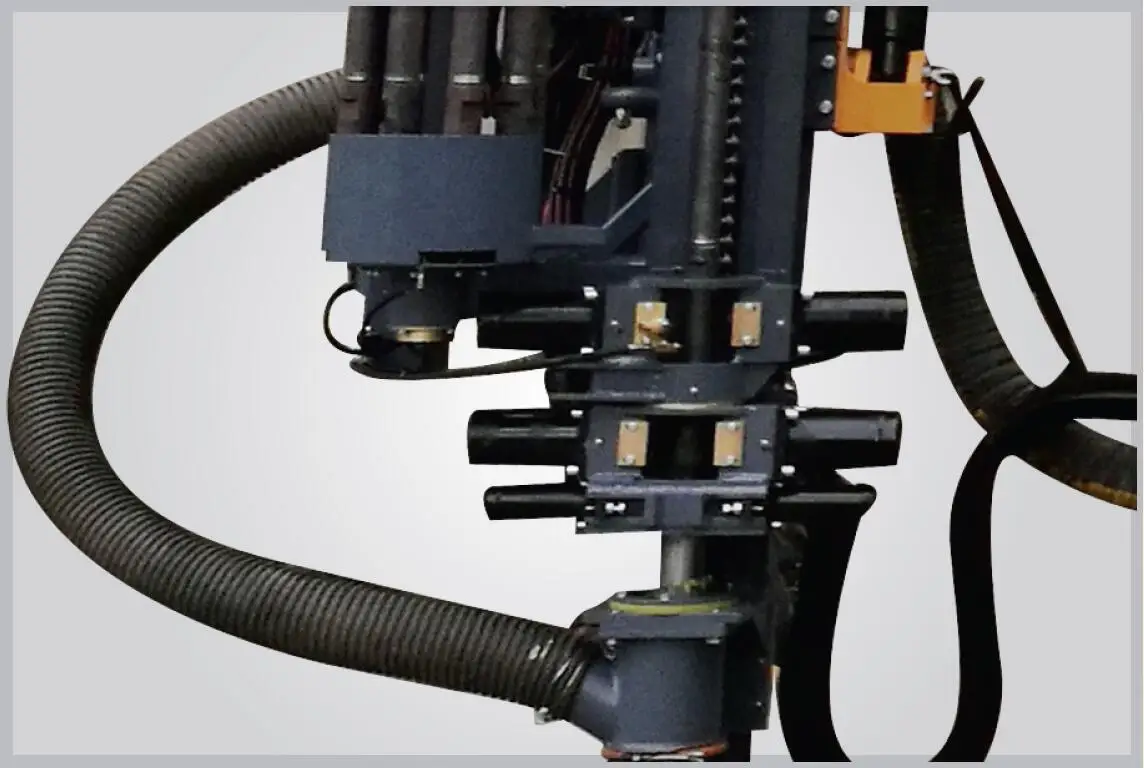

2. automatically install and uninstall drill pipe
3. operation cabin with air condition
4. fitted with dust collection, Environmental Protection

Introduction of Integrated Down The Hole Drill Rig

ZT5 integrated drilling rigs is an advanced drill, whose drilling system and screw air compressor system are together on one
machine. And it does not need to buy seprated air compressor to use. The machine fitted with six-cylinder diesel engine to provide
power for the two systems. Also it is fitted with dust collection, environmental protection and energy saving,.It is suitable for
open-pit mine, quarry, highway,railway, water conservancy, electric power, construction and other medium and deep hole in the
stone engineering extension rod drilling operation.

Specification

Rock hardness	f=6-20	Rotating torque(N.m)	1680
Drilling diameter(mm)	90-105	Maximum lifting power(N)	25000
Economic drill depth(m)	24	Carriage lifting angle	up 47° down 20°
Travel speed(Km/h)	0-3.0
Gradeability	25°	Carriage swing angle	right 95° left 35°
Ground clearance(mm)	430
Machine Power(kW)	176	Drill arm swing angle	right 50° left 20°
Diesel	Yuchai YCA07240-T300
Screw capacity(m³/min)	10	Push length(mm)	1200
Screwworking Pressure(Mpa)	1.5	Compensation length(mm)	3490
Dimension (mm)	885021802830	Hammer	HD35A / HD45A
Weight(Kg)	13800	Drill rod	Φ64*3000mm
Rotating Speed(r/min)	0-120	Catching dust	Hydraulic cyclone layer flow

Recommend Products

Recommend Below Spare Parts for ZT5:

Drill bit Dia.	100mm-105mm	90 mm-100 mm
Drill pipe Dia*L	Φ64/Φ76x3000mm	Φ64x3000mm
Drill hammer	HD35/HD45/930	KQ90

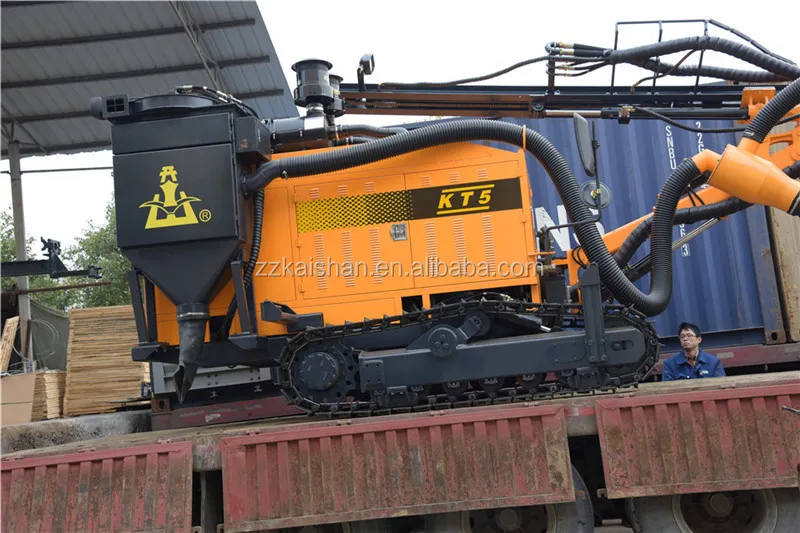

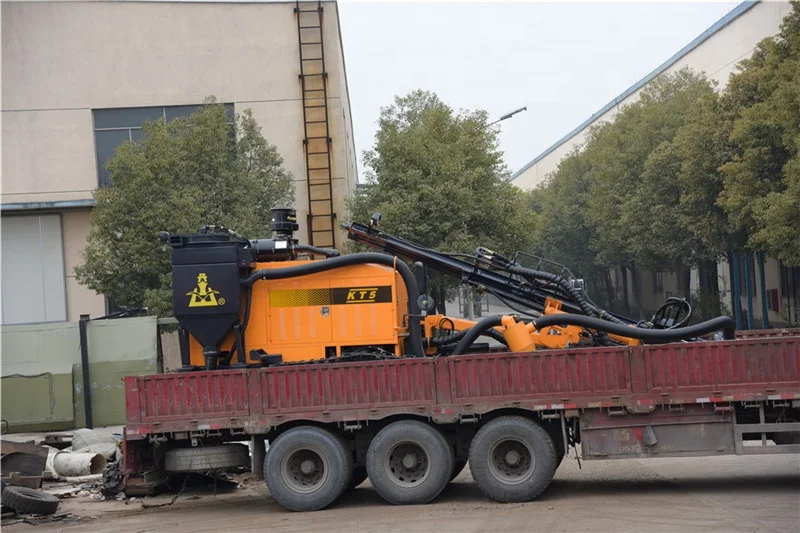

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profie

Certifications

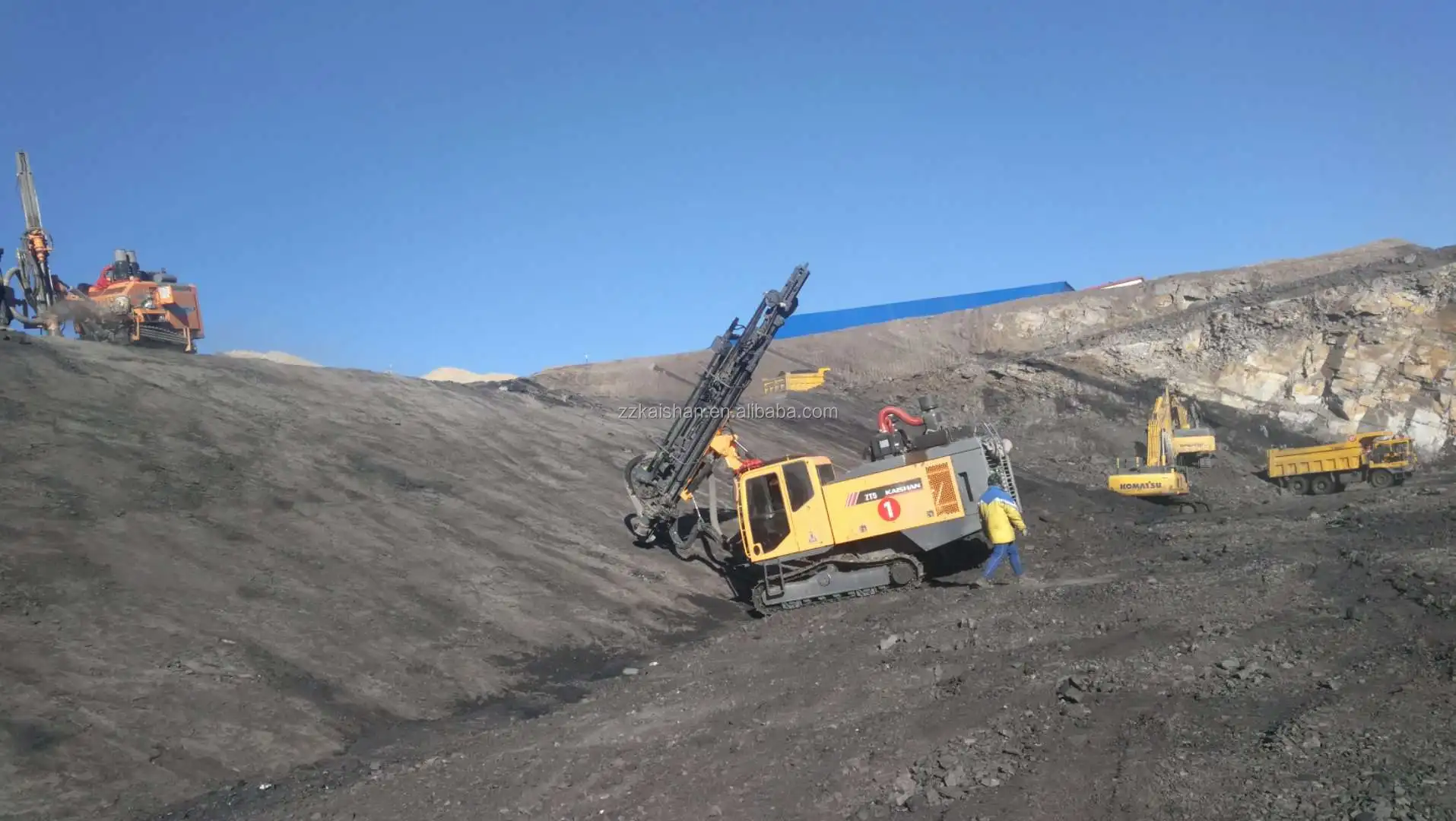

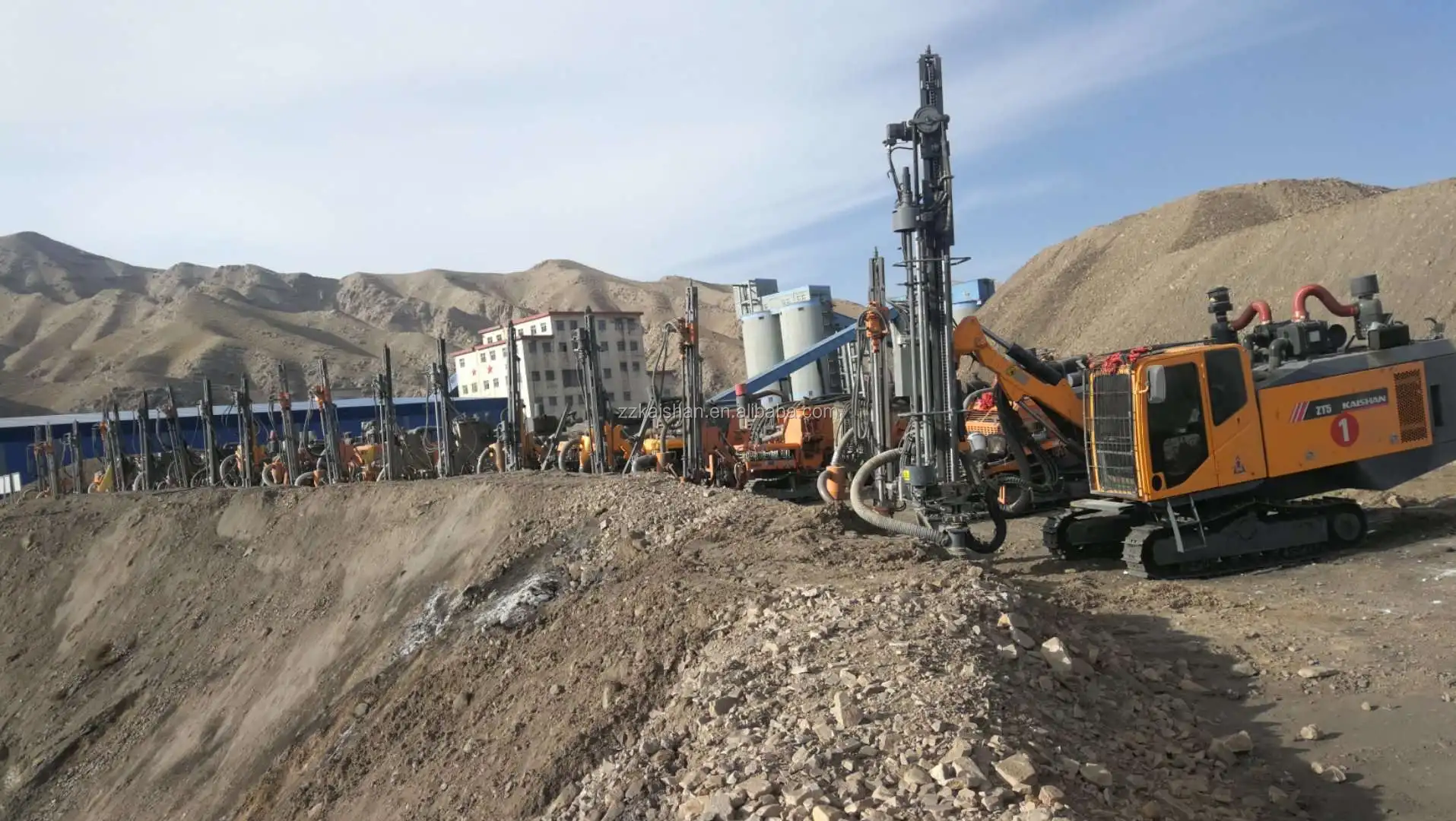

Customer Photos
