You Are Here : HOME > PRODUCT > Surface Mining Drill Rig

Kaishan Hot Selling KG310 mine_drilling_rig_blasting / mine drilling rig hydraulic machine

Email: lgdrill@hotmail.com

Follow us:

Chat Online Leave Message

Overview

Overview

Product Description

kaishan KG310 blast hole drill rig / mine drilling rig

Description of Mining Drilling Machine KG310 for blasting
The KG310/KG310H down the hole drill rig for open use is an improved device in compliance with national regulations on
environmental protection. Equipped with the Yuchai double-cylinder engine (China III), the drill rig meets the national standards for emissions and environment. The flexible derricking mechanism is suitably qualified for horizontal drilling at a low level. The hydraulic system has been improved, leading to increased system flow and rotary speed. Moreover, the hydraulic cylinder has been optimized, thus making it more reliable; and the additional ring (plate) makes handling and lifting easier.
The KG310H down the hole drill rig for open use is equipped with a dust collector, thus making operation more environment-friendly and reliable.

Advantage of Mining Drilling Machine KG310 for blasting:
1. National Free-inspection Product, it has high quality;
2. New type feeding system. Using oil cylinder chain pulley makes it having compact structure, powerful braking and operation stability;
3. Using famous single cylinder diesel engines as power, it has simple construction and easy to handle.
4. Reliable hyraulic pump set. Having private hydraulic component increases its reliability of system. Its oil cooling system
elimate the effectiom of hydraulic oil heating on system;
5. Professional maintenance team offers good after-sale service;
6. Used abroad and strong gradeability.

Recommended air compressor
LGCY-12/10 LGCY-10/10

Size Information

Model of drill rig	KG310	KG310H
Weight of complete machine	4000KG	4200KG
Outer dimensions	4650×2000×2200mm	4650×2500×2200mm
Drilling hardness	f=6-20
Drilling diameter	Φ80-105mm
Depth of economical drilling	20m
Rotary speed	0-120rpm
Rotary torque	1250N·m
Lifting force	18KN
Method of Feed	Oil cylinder-leaf chain
Feed stroke	2670mm
Travelling speed	0-2.0km/h
Climbing capacity	≤30°
Ground clearance	250mm
Tilt angle of Beam	Down:145°, up: 55°, total: 190°
Swing angle of boom	Left: 100°, right: 45°, total: 145°
Pitch angle of drill boom	Down: 50°, up: 25°, total: 75°
Compensation length of beam	900mm
Supporting power	Yuchai power YCCA13T6-45 (33.1KW/2400r/min)
Drilling rod	Φ60×2m
DTH hammer	L3
Air consumption	7-15m3/min
Maximum height of horizontal hole	2650mm
Minimum height of horizontal hole	660mm

Related Products

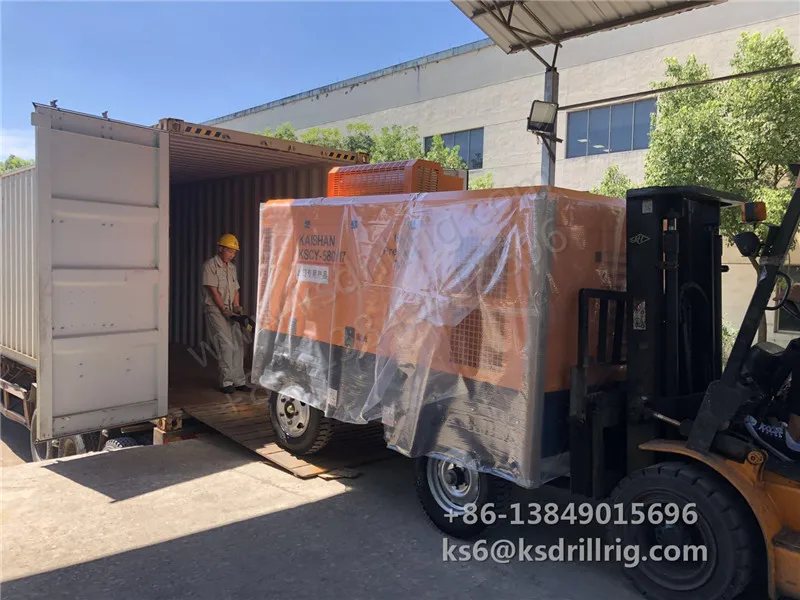

Packing&Shipping

Company Introduction

We are located in Zhengzhou City, Henan Province, the Central area of China with convenient transportation access.
All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
We now have over 100 employees, an annual sales figure that exceeds USD 10 million and are currently exporting 45% of our production worldwide.

Certifications

Customer Photos

Contact us：

if you are interested in our products, please feel free to contact us!
